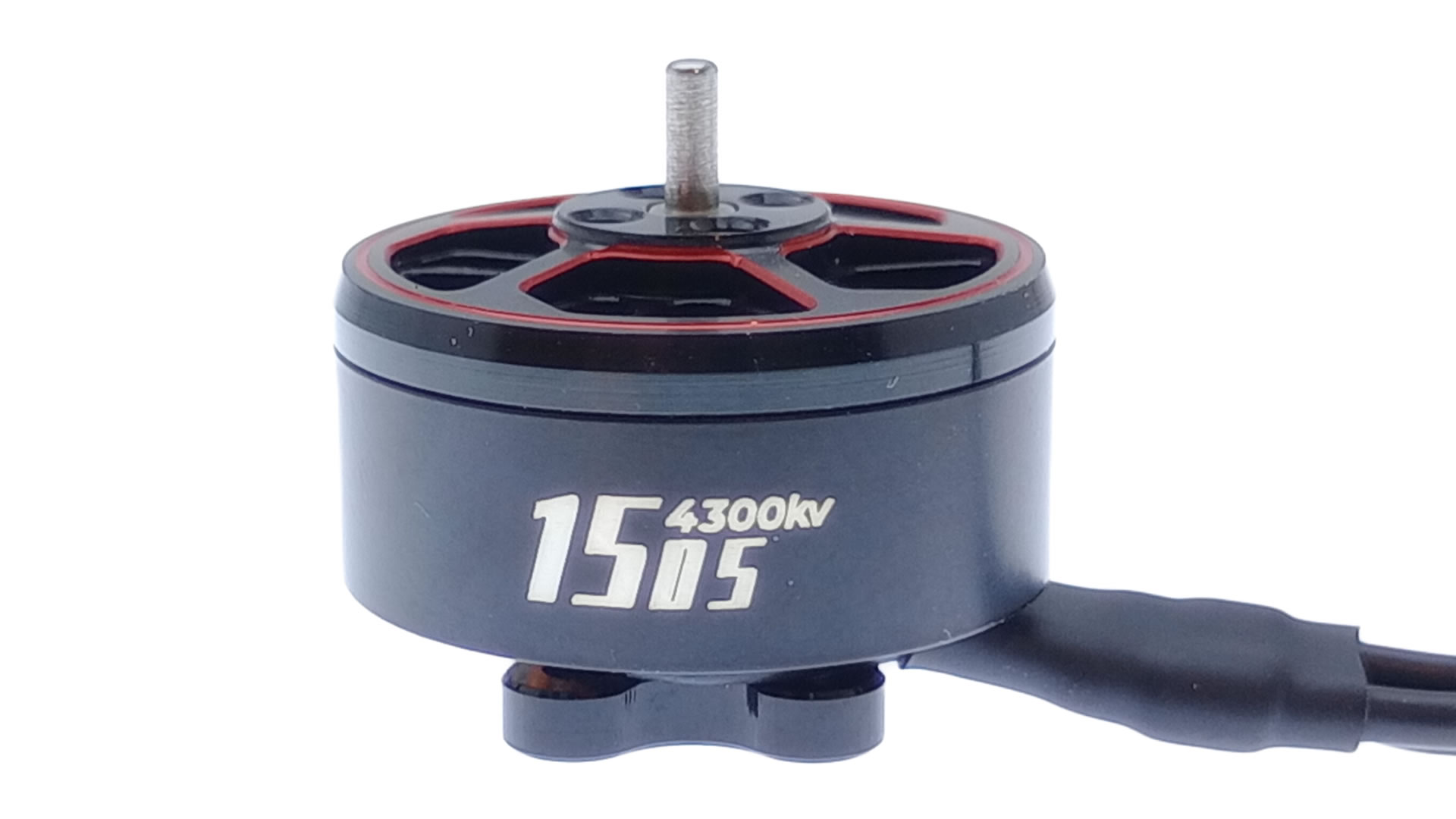

GEPRC SPEEDX2 1505 4300KV Motor

Summary

SPEEDX2 1505 4300KV motor, compatible with 2.5-3.5 inch blades. Adopting high-precision and wear-resistant bearings, the motor has a longer service life.

Feature

1. The match of matt black and red upscale the exterior appearance.
2.  Adoption of high-precision, wear-resistant bearings.
3.  Light texture, high-power density.
4.  Suitable for 2.5-inch~3.5-inch light-weight drone.

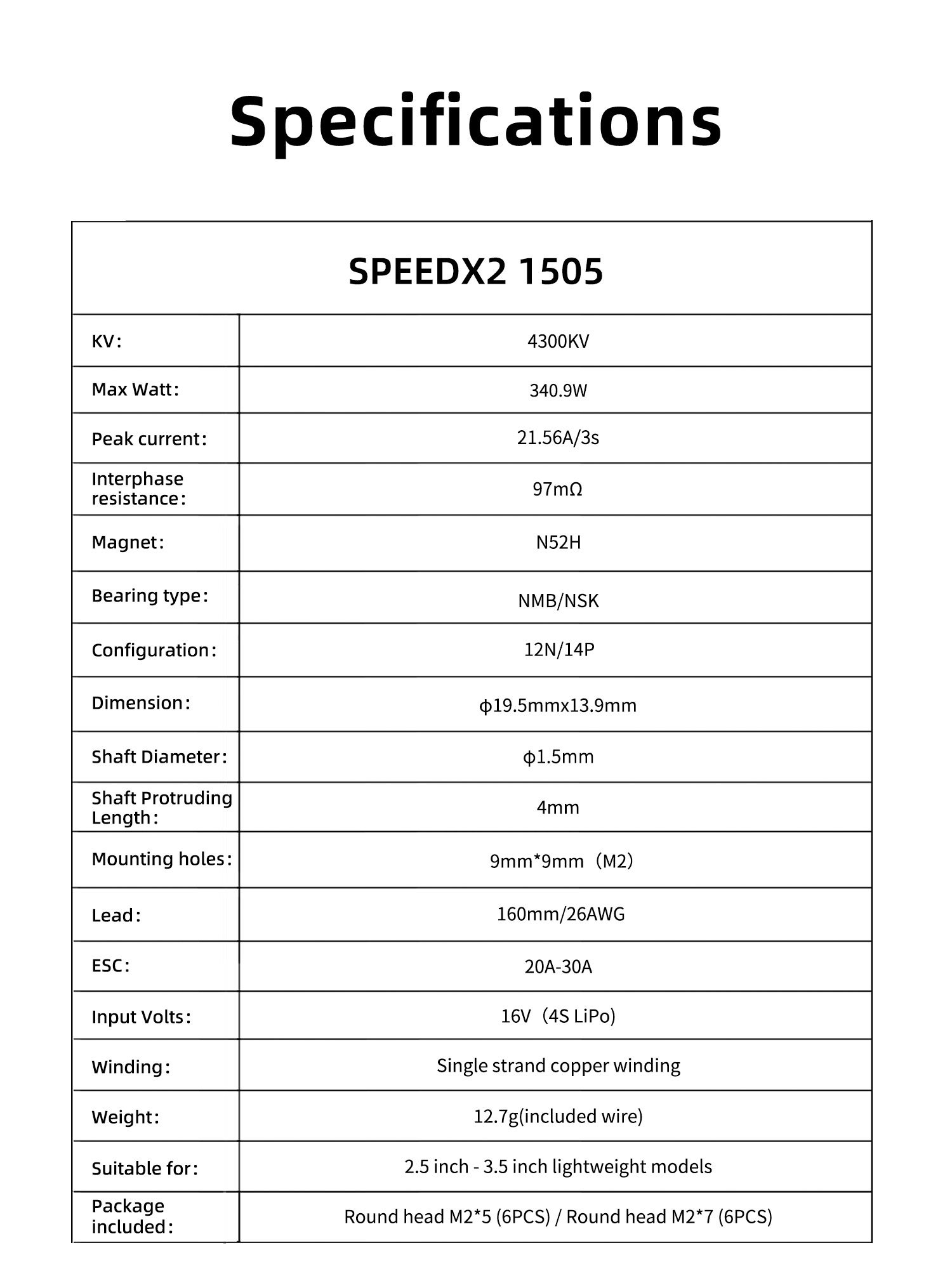

Specifications

• Model：SPEEDX2 1505 4300KV Motor
• Max Watt：340.9W
• Peak current：21.56A/3s
• Interphase resistance：97mΩ
• Magnet：N52H
• Bearing type：NSK/NMB
• Configuration：12N/14P
• Dimension： φ19.5mmx13.9mm
• Shaft Diameter：φ1.5mm
• Shaft Protruding Length：4mm
• Mounting holes：9mm*9mm（M2）
• Lead：160mm/26AWG
• ESC：20A-30A
• Input Volts: 16.8V（4S LiPo)
• Winding：Single strand copper winding
• Weight：12.7g(included wire)
• Suitable for：2.5 inch – 3.5 inch lightweight models

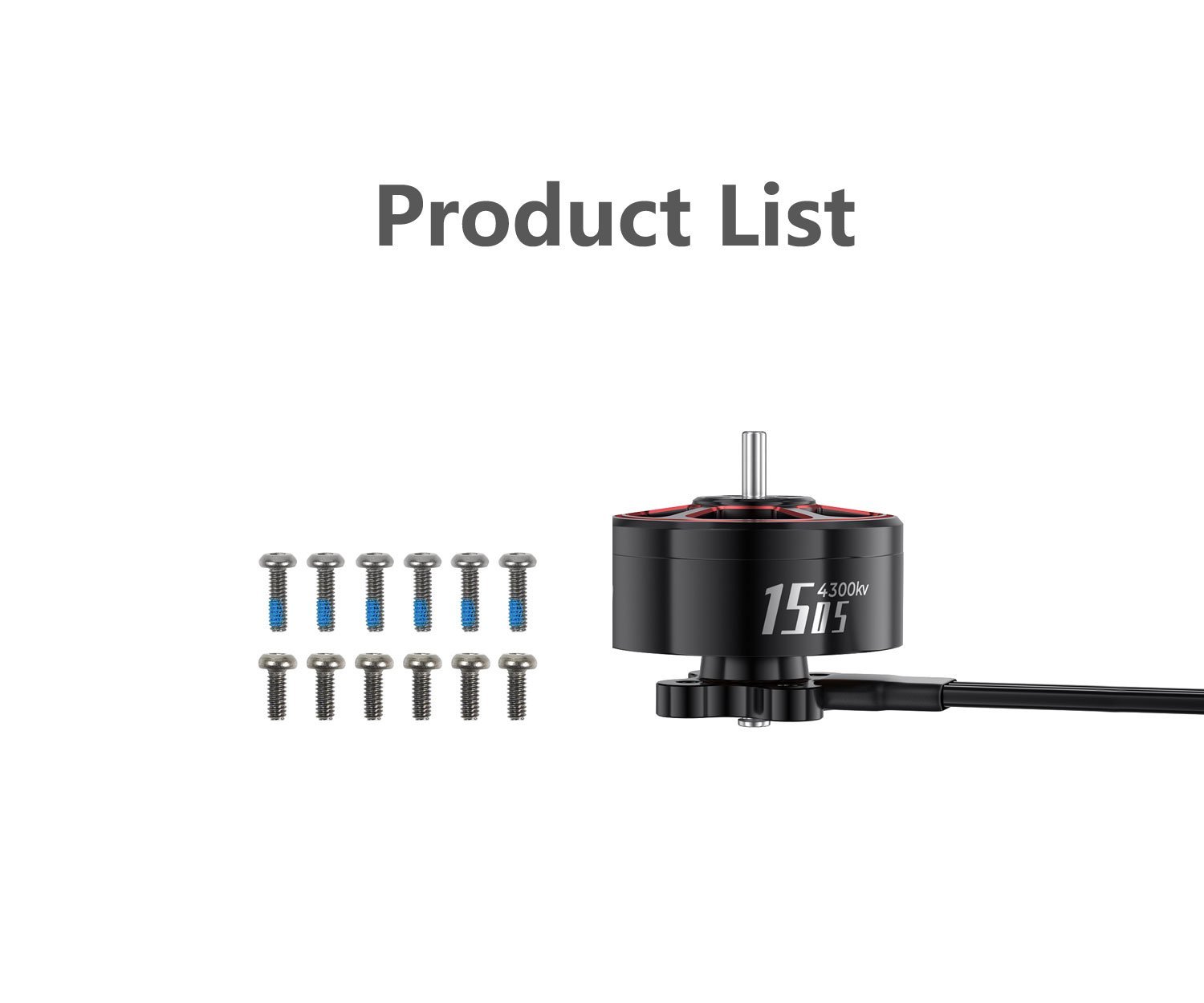

Includes

1 x SPEEDX2 1505 4300KV Motor

6 x M2*5mm Screw

6 x M2*7mm Screw
