Motor SPCMaker G0802 25000KV

Motor SPCMaker G0802 25000KV

19.30 AUD

(price per motor)

8 in stock

Categories 08XX Motors, 1S Whoop Parts, All Motors, Motors

0802 motors between 19,000KV and 25,000KV are a great choice for a 1S whoops. For 1.2 inch (31mm) props choose a 3 blade prop. For 1.6 inch (40mm) props choose a 2 blade prop.
This 25,000KV motor is best paired with a 1.2 Inch (31mm) 3 blade prop. However the Mobula7 Freestyle HD runs a 25,000KV motor with a 1.6 inch (40mm) 3 blade prop.
(see examples)

Motor SPCMaker G0802 25000KV

Model: G0802 25000KV						Weight (including wire) : 2g

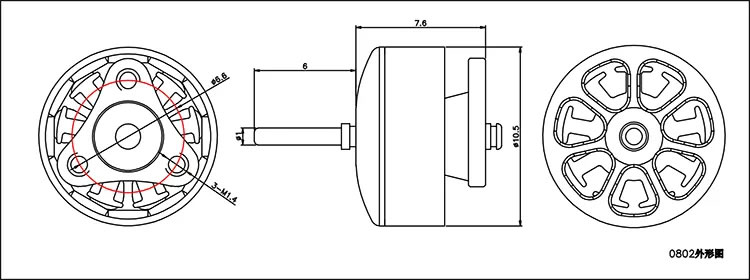

Size: phi is 10.5 * 7.6 mm						Interphase resistance: about 160mΩ
Lead wire: JST1.25 plug wire 35MM						Trough pole: 9N12P
Shaft diameter: 1.0mm						Rated working voltage (Lipo) : 1S
No load current (4.0V) : ≤1.0A						Current on-line: 5.0A
Power upper limit: 20W						Bearings: Double Japanese NSK681

Model	Propeller	Accelerator	Tension (g)	Voltage (V)	Current (A)	Rotational speed (RPM)	Power (W)	Power efficiency (G/W)	70% throttle point load 180 seconds temperature (ambient temperature 27.2℃)
0802 25000KV	HQ 31MM three-bladed propeller	20%	1.78	4.00	0.59	15344	2.36	0.75	40.3℃
		30%	2.21	4.00	0.68	22587	2.72	0.81
		40%	4.00	4.00	1.03	29307	4.12	0.97
		50%	6.93	4.00	1.45	34374	5.80	1.19
		60%	11.23	4.00	1.92	40467	7.68	1.46
		70%	14.62	4.00	2.36	46415	9.44	1.55
		80%	18.33	4.00	2.71	50446	10.84	1.69
		90%	23.78	4.00	3.19	54261	12.76	1.86
		100%	31.18	4.00	4.17	58513	16.68	1.87
	HQ 31MM four-bladed propeller	20%	1.81	4.00	0.60	15201	2.40	0.75	41.6℃
		30%	3.65	4.00	1.01	22112	4.04	0.90
		40%	6.88	4.00	1.41	28368	5.64	1.22
		50%	11.36	4.00	1.92	33877	7.68	1.48
		60%	14.53	4.00	2.38	39834	9.52	1.53
		70%	19.19	4.00	2.77	44032	11.08	1.73
		80%	23.55	4.00	3.18	48326	12.72	1.85
		90%	28.31	4.00	3.70	52993	14.80	1.91
		100%	32.94	4.00	4.34	55219	17.36	1.90
	HQ 35MM three-bladed propeller	20%	2.68	4.00	0.60	14760	2.40	1.12	44.7℃
		30%	5.73	4.00	1.06	21459	4.24	1.35
		40%	9.38	4.00	1.51	27336	6.04	1.55
		50%	13.11	4.00	1.98	32015	7.92	1.66
		60%	17.81	4.00	2.52	36519	10.08	1.77
		70%	23.09	4.00	2.98	40809	11.92	1.94
		80%	28.85	4.00	3.47	44425	13.88	2.08
		90%	32.24	4.00	3.97	47855	15.88	2.03
		100%	36.82	4.00	4.74	50308	18.96	1.94
	GF 1610-2 40MM two-bladed propeller	20%	3.71	4.00	0.63	13887	2.52	1.47	43.8℃
		30%	7.95	4.00	1.14	19746	4.56	1.74
		40%	13.13	4.00	1.73	24502	6.92	1.90
		50%	17.66	4.00	2.17	29176	8.68	2.03
		60%	22.79	4.00	2.75	33164	11.00	2.07
		70%	26.60	4.00	3.23	36652	12.92	2.06
		80%	35.03	4.00	3.98	39767	15.92	2.20
		90%	40.21	4.00	4.55	42721	18.20	2.21
		100%	44.86	4.00	5.42	45497	21.68	2.07
	GF 35MM three-bladed propeller	20%	2.72	4.00	0.60	14795	2.40	1.13	40.1℃
		30%	6.28	4.00	1.06	21177	4.24	1.48
		40%	10.78	4.00	1.54	27063	6.16	1.75
		50%	14.05	4.00	2.04	32189	8.16	1.72
		60%	19.99	4.00	2.52	36289	10.08	1.98
		70%	25.12	4.00	2.97	41084	11.88	2.11
		80%	29.91	4.00	3.46	44153	13.84	2.16
		90%	32.78	4.00	3.94	48212	15.76	2.08
		100%	36.07	4.00	4.67	51833	18.68	1.93
	GF 35MM four-bladed propeller	20%	2.88	4.00	0.60	14807	2.40	1.20	40.8℃
		30%	6.22	4.00	1.09	21371	4.36	1.43
		40%	10.48	4.00	1.60	26460	6.40	1.64
		50%	14.08	4.00	2.04	31501	8.16	1.73
		60%	20.09	4.00	2.59	35971	10.36	1.94
		70%	25.52	4.00	3.13	39751	12.52	2.04
		80%	28.87	4.00	3.54	43899	14.16	2.04
		90%	32.64	4.00	4.01	47101	16.04	2.03
		100%	37.57	4.00	4.74	50549	18.96	1.98
